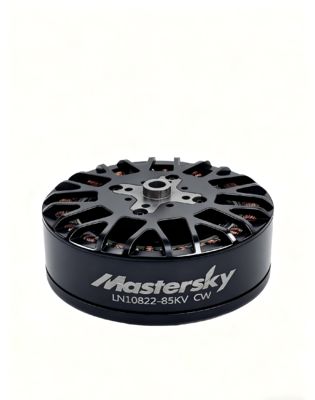

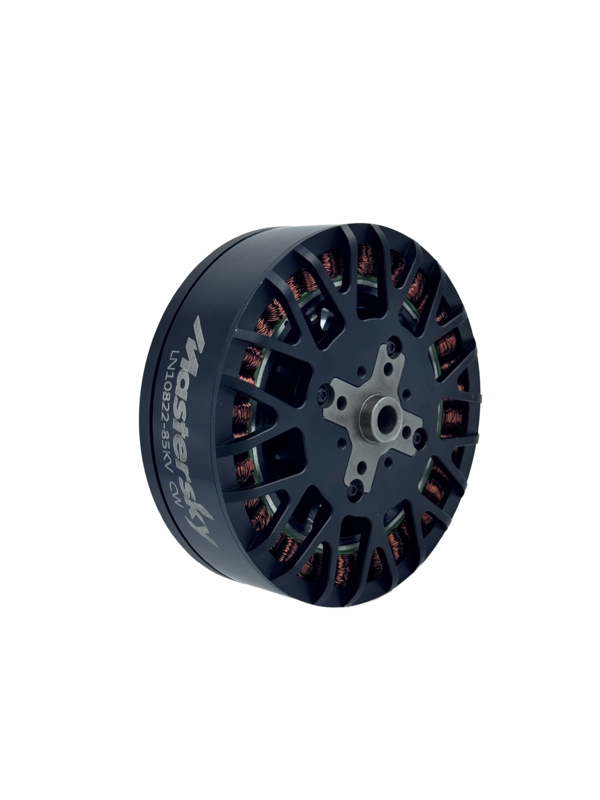

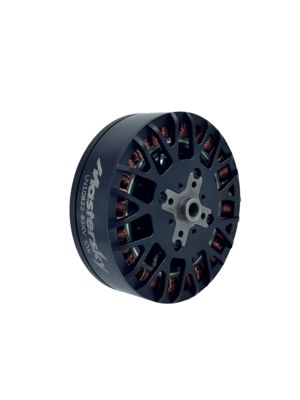

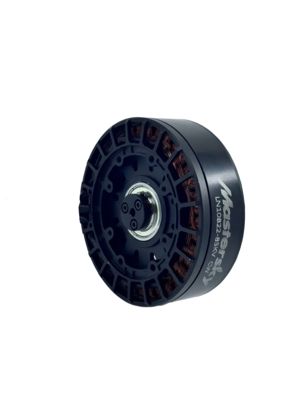

The LN10822 motor is an excellent power device. It has a KV value of 85 and is recommended to be used with a 14S-18S

lithium battery configuration. This motor can achieve a maximum thrust force of 37.5KG, with a recommended take off

weight ranging from 15KG to 18KG, and the system weight of the power assembly is 2.85KG. In terms of current, the max

-imum current is 146A, and the maximum continuous working current is 50A. The motor dimension is 116*42.5mm, the

stator dimension is 108*2mm, the mounting dimension is 8-M4*10, and a 43-inch propeller is recommended, which can

provide strong and stable power support for related equipment.

• Rated Voltage: 60VDC (DC 60V)
• Motor Rotation Direction: CCW rotation (from the shaft extension end; CCW: Counterclockwise)
• Motor Withstand Voltage Test: ADC 600V/3mA/1Sec (ADC: Alternating Current Direct Current, referring to DC withstand voltage test here, with test parameters of DC 600V, 3mA, and 1 second)
• No-Load and Load Performance: - No-Load Performance: Rotational speed of 3600 RPM ±10% (RPM: Revolutions Per Minute), maximum current of 1.5A (Ampere) - Load Performance: Rotational speed of 2770 RPM ±10%, current of 75.9A ±10%, torque of 13.7N·m (Newton-meter)
• Motor Vibration: Vibration acceleration ≤7 m/s² (meters per second squared)
• Backlash: 0.01-0.2mm (The value order is adjusted to "minimum-maximum" in line with conventional precision range, referring to the fit clearance between components)
• Noise: Noise level ≤60dB (Decibel) at 1m distance (ambient noise ≤45dB during testing)
• Insulation Class: CLASS F (referring to the heat resistance class of motor insulation materials, with a maximum allowable operating temperature of 155℃)
• Motor Operation Status: No abnormal phenomena such as smoke, peculiar smell, abnormal noise, or end play (axial or radial movement of components) shall occur during operation 10. Motor Appearance: The appearance shall be clean and free of rust
