| Nazwa Marki: | Retek |
| Numer modelu: | Zębatki stalowe |
| MOQ: | 1000pcs |
| Cena £: | negotiable |
| Czas dostawy: | 14 DNI |

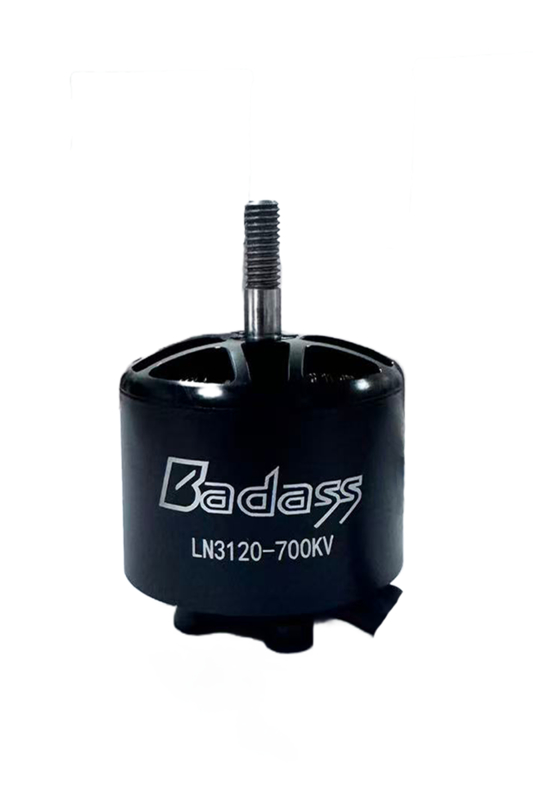

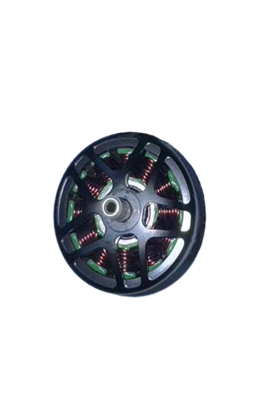

LN3120D24-002 is a motor specifically designed for model aircraft and other applications. It has electrical properties such as a rated voltage of 24VDC and a KV value of 700, with an approximate no-load speed of 700 revolutions per minute (RPM) at 1V voltage. At 24V, the theoretical no-load speed reaches 16,800±10% RPM. It has also passed the ADC 600V/3mA/1Sec withstand voltage test, with an insulation class of CLASS F. Its mechanical performance is also remarkable. At a load speed of 13,000±10% RPM, it corresponds to a current of 38.9A±10% and a torque of 0.58N·m.
General Specification:
|
|
| Nazwa Marki: | Retek |
| Numer modelu: | Zębatki stalowe |
| MOQ: | 1000pcs |
| Cena £: | negotiable |
| Szczegóły opakowania: | 25pcs/karton |
LN3120D24-002 is a motor specifically designed for model aircraft and other applications. It has electrical properties such as a rated voltage of 24VDC and a KV value of 700, with an approximate no-load speed of 700 revolutions per minute (RPM) at 1V voltage. At 24V, the theoretical no-load speed reaches 16,800±10% RPM. It has also passed the ADC 600V/3mA/1Sec withstand voltage test, with an insulation class of CLASS F. Its mechanical performance is also remarkable. At a load speed of 13,000±10% RPM, it corresponds to a current of 38.9A±10% and a torque of 0.58N·m.
General Specification:
